The PROTECT 2200i Fog Cannon includes: one-hole 90° nozzle, XTRA+ 3 l. fog fluid container and backup batteries.

Add to Favourites
Recommend
Comparison
Question about the product
Details
Specifications
Reviews
DOCUMENTATION
VIDEO GALLERY
Details

Model 2200i is the most powerful fog cannon for anti-burglary protection.

It has an enormous capacity and discharges with a massive roar.

2200i is designed for warehouses, large shops, shopping centers and buildings with mezzanines and large entrance ways.



Features:

• Discharges 2700 m3 of fog at full speed in 60 seconds

• Flexible adjustment between 900 and 2875 m3 to exactly fit the size of the room

• Pulse function for up to 10 min. (effective maintenance of the fog)

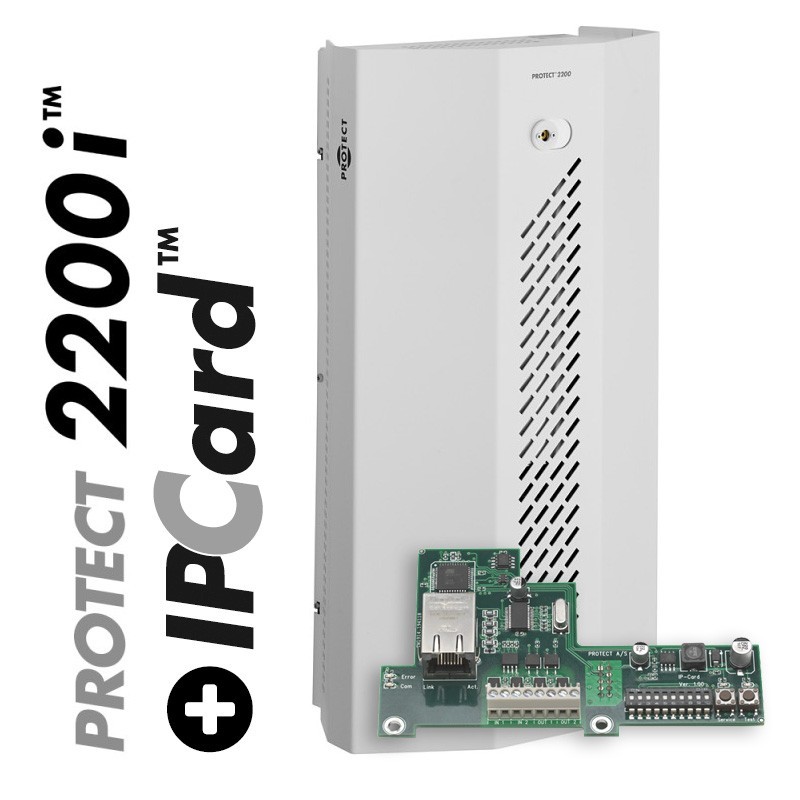

• Compatible with IPCard, MultiCard and IntelliBox

• Data log memory possible with IntelliSuite

• Built-in daily, automatic battery test

• Integration with all types of alarm systems

• 100 % silent in standby mode

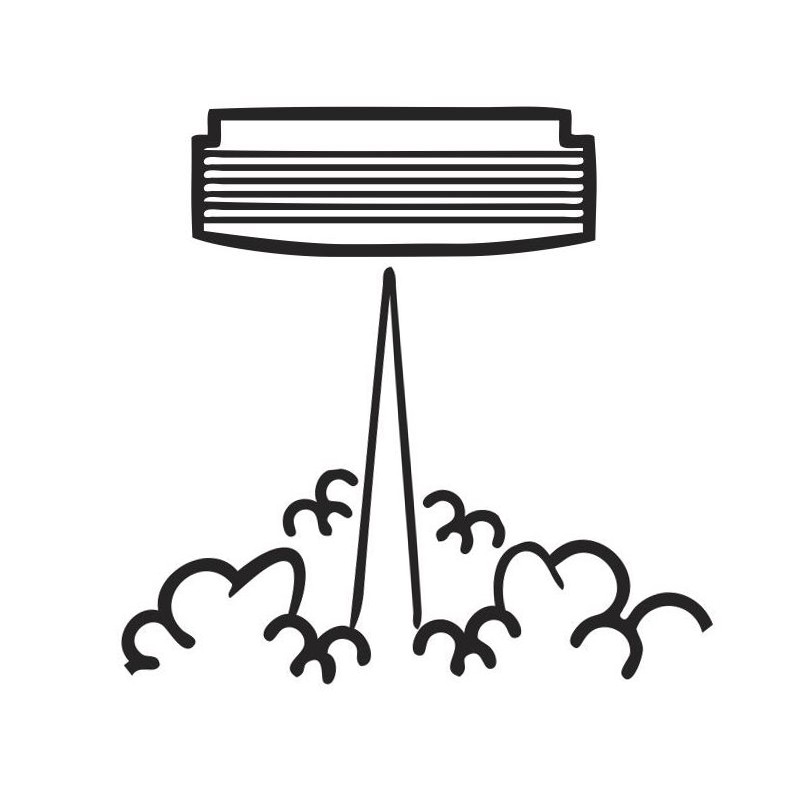

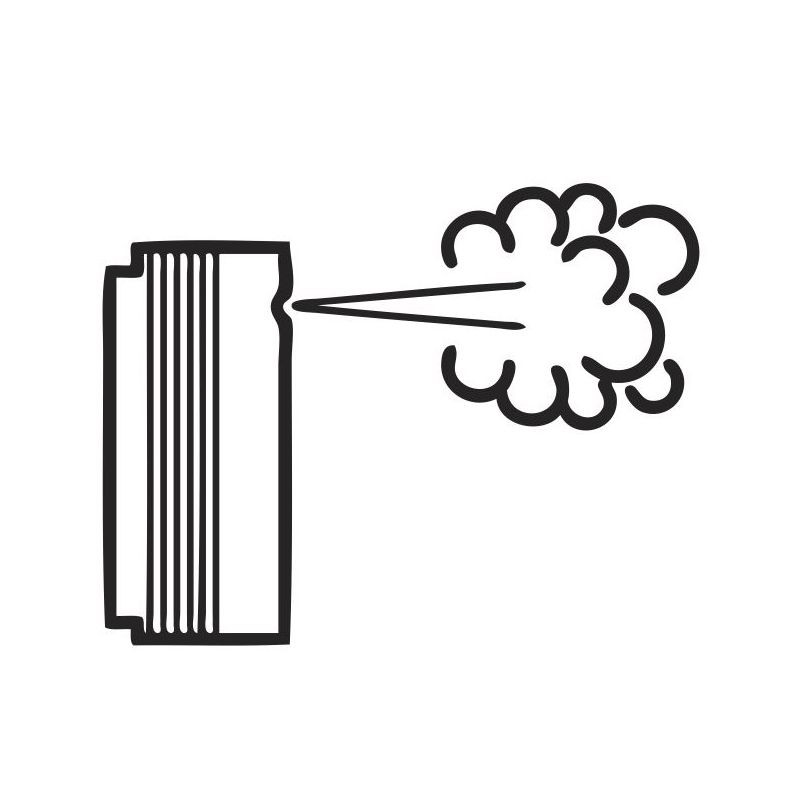

• Prepared for 4 different angled nozzles and nozzle extension piece

Specifications
Premises to be protected
Warehouse, Office, Supermarket
Fog generation settings
6
Total capacity (full fluid container)
13 200 m³
Fog fluid
3 l. container
Electronic fluid measurement
Yes
Mains connection
230V, 50Hz
Number of 60-sec. shots in one container
5
Pulse function
Yes
Heating time from cold
30 min.
Power consumption during heating
1 680 W
Standby consumption after heating up (on average)
80 W
Standby consumption when heat is disabled
5 – 10 W
Re-heating time after fog discharge
0 – 14 min.
Operating temperature (min./max.)
5 – 80 °C
Input
5 signals
Output
3 signals
Signals setting
Dipswitches
Power backup
2 x 12V, 1.2 Ah batteries
Backup time after power failure
Up to 3 hours
Battery charging & testing
Yes
Signals/indicators
Optical, audible and electrical
Status indicator on PCB
Yes
External status indicator on casing
Yes
Anti-sabotage, impact-resistant steel casing
Yes
Length
633 mm
Width
352 mm
Height
172 mm
Weight
24.8 kg
Reviews
Be the first to review this product!
DOCUMENTATION

Only the latest documents can be downloaded. Therefore, there may be a discrepancy between already printed and downloaded materials.

To download, please click on the name of the document you want to download.

• Technical datasheet (PDF)

• Certificate of Conformity with EN 50131-8 standard (PDF)

• VSO approval certificate (PDF)

• VdS approval certificate (PDF)

• Declaration of Conformity (PDF)

• PROTECT XTRA+ Fog fluid Safety Data Sheet (English PDF)

• PROTECT XTRA+ Fog fluid Safety Data Sheet (Bulgarian PDF)

• PROTECT XTRA+ Fog fluid Safety Data Sheet (Croatian PDF)

• PROTECT XTRA+ Fog fluid Safety Data Sheet (Serbian PDF)

• PROTECT XTRA+ Fog fluid Safety Data Sheet (Slovenian PDF)

• DTI Declaration of chemical analysis & assessment (PDF)

• MABISZ Product Conformity Recommendation (PDF)

• Connection diagrams (PDF)

VIDEO GALLERY

PROTECT 2200i in action

Wall mount

Nozzles

Display

Replacing the fluid container

IntelliCloud - Service Reporting Service

WebShop System
