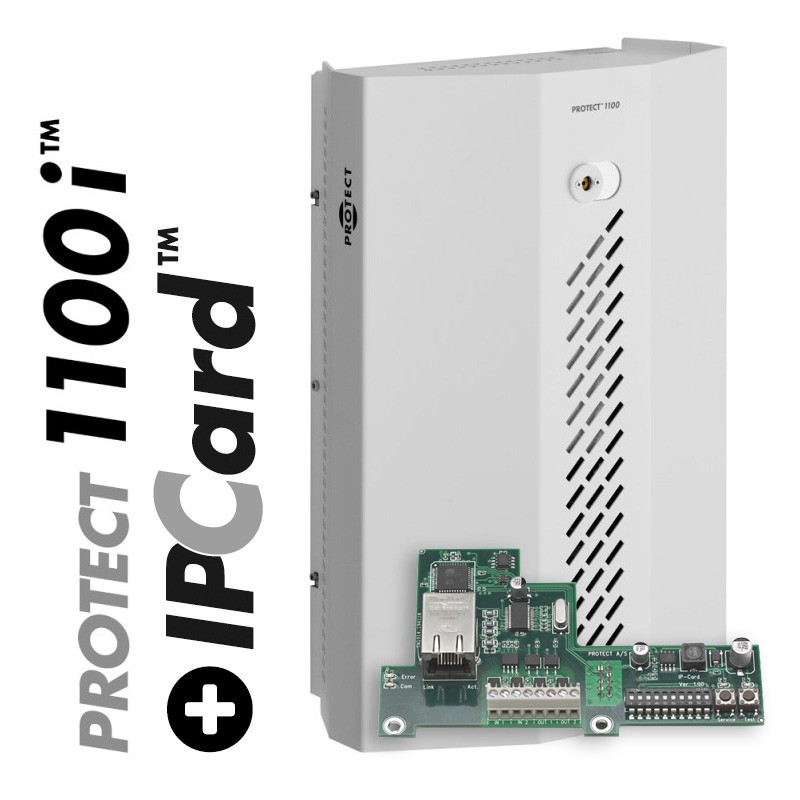

The PROTECT 1100i IP Fog Cannon includes: IPCard extension board, one-hole 90° nozzle, XTRA+ 1,1 l. fog fluid container and backup batteries.

Add to Favourites
Recommend
Comparison
Question about the product
Details
Specifications
Reviews
DOCUMENTATION
VIDEO GALLERY
Details

Model 1100i IP is extremely powerful and fills the room very quickly.

It’s designed for protection of large spaces: office environments, large shops and storage facilities. Or even large private garages.



Features:

• Discharges 1300 m3 of fog at full speed in 60 seconds

• Flexible adjustment between 500 and 1300 m3 to exactly fit the size of the room

• Pulse function for 4 min. (effective maintenance of the fog)

• Compatible with IntelliBox

• Data log memory possible with IntelliSuite

• Built-in daily, automatic battery test

• Integration with all types of alarm systems

• 100 % silent in standby mode

• Prepared for 4 different angled nozzles and nozzle extension piece

Specifications
Premises to be protected
Office, Convenience store, Warehouse, Petrol station, Pawn shop, Jewellery store
Fog generation settings
5
Total capacity (full fluid container)
4 800 m³
Fog fluid
1,1 l. container
Electronic fluid measurement
Yes
Mains connection
230V, 50Hz
Number of 60-sec. shots in one container
4
Pulse function
Yes
Heating time from cold
25 min.
Power consumption during heating
1 350 W
Standby consumption after heating up (on average)
70 W
Standby consumption when heat is disabled
5 – 10 W
Re-heating time after fog discharge
0 – 8 min.
Operating temperature (min./max.)
5 – 80 °C
Input
5 signals
Output
3 signals
Signals setting
Dipswitches
Power backup
2 x 12V, 1.2 Ah batteries
Backup time after power failure
Up to 3 hours
Battery charging & testing
Yes
Signals/indicators
Optical, audible and electrical
Status indicator on PCB
Yes
External status indicator on casing
Yes
Anti-sabotage, impact-resistant steel casing
Yes
Length
475 mm
Width
332 mm
Height
174 mm
Weight
16 kg
