The PROTECT FOQUS Fog Cannon includes: one-hole 90° nozzle, XTRA+ 1,1 l. fog fluid container and backup batteries.

Add to Favourites
Recommend
Comparison
Question about the product
Details
Similar products
Specifications
Reviews
DOCUMENTATION
VIDEO GALLERY
Details

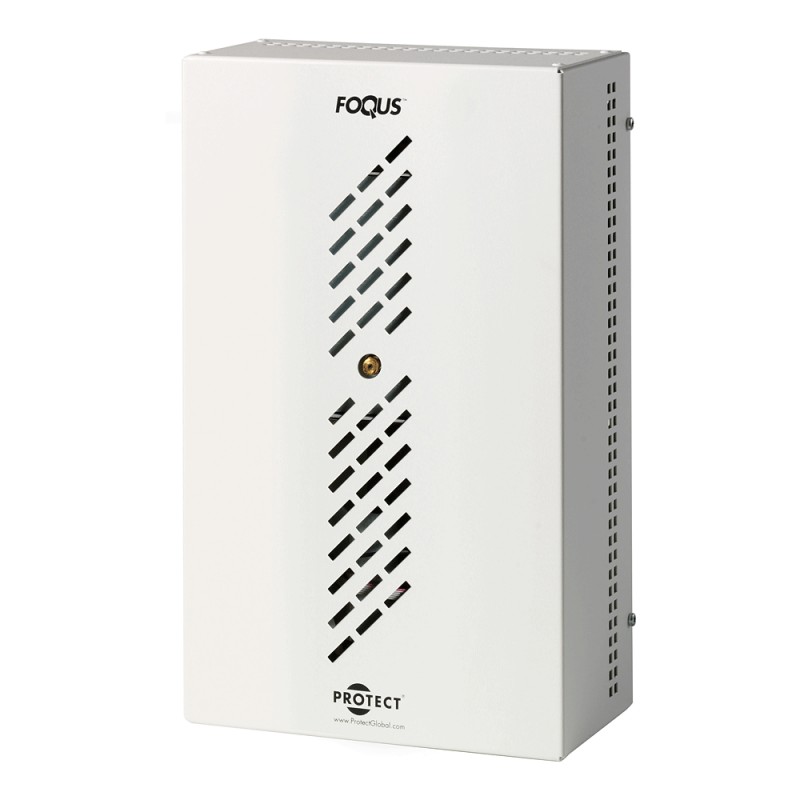

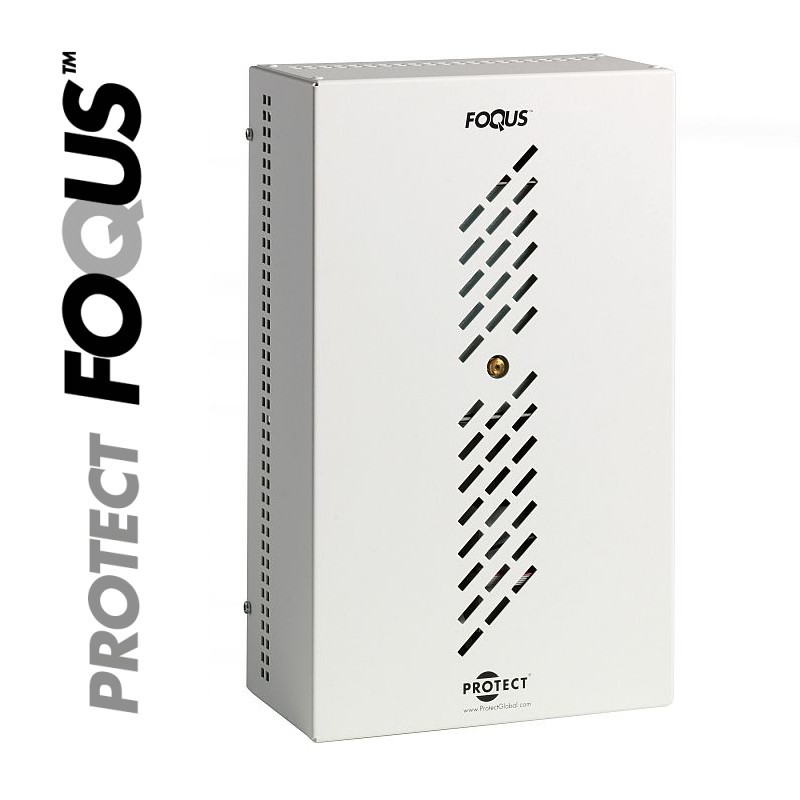

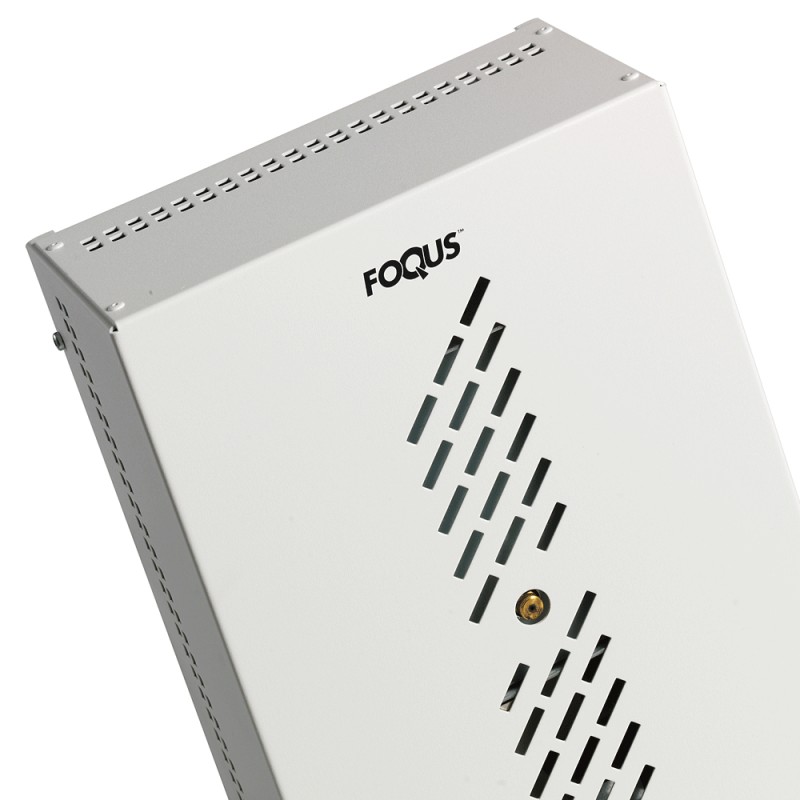

Model FOQUS is a compact fog cannon for very small rooms up to 25 m2.

Thanks to its lightweight design, FOQUS is well suited for server rooms, ATM rooms, home offices etc.

FOQUS is often used for partial protection as it covers small areas quickly and efficiently.



Features:

• Discharges enough fog to cover a room up to 25 m2

• Flexible adjustment between 8 and 25 m2 to exactly fit the size of the room

• Pulse function for up to 5 min. (effective maintenance of the fog)

• Compatible with any alarm system

• Compatible with IPCard, MultiCard and IntelliBox

• Data log memory possible with IntelliSuite

• Built-in daily, automatic battery test

• Integration with all types of alarm systems

• 100 % silent in standby mode

• Prepared for 2 different angled nozzles

Similar products
Specifications
Premises to be protected
Pawn shop, Exchange house, Server room, ATM, Private house
Fog generation settings
6
Total capacity (full fluid container)
4 800 m³
Fog fluid
1,1 l. container
Electronic fluid measurement
Yes
Mains connection
230V, 50Hz
Number of 60-sec. shots in one container
20
Pulse function
Yes
Heating time from cold
7 min.
Power consumption during heating
700 W
Standby consumption after heating up (on average)
55 W
Standby consumption when heat is disabled
5 – 10 W
Re-heating time after fog discharge
0.5 – 3 min.
Operating temperature (min./max.)
5 – 80 °C
Input
5 signals
Output
3 signals
Signals setting
Dipswitches
Power backup
2 x 12V, 1.2 Ah batteries
Backup time after power failure
Up to 1 hour
Battery charging & testing
Yes
Signals/indicators
Optical, audible and electrical
Status indicator on PCB
Yes
External status indicator on casing
Yes
Anti-sabotage, impact-resistant steel casing
Yes
Length
400 mm
Width
240 mm
Height
135 mm
Weight
7 kg
Reviews
Be the first to review this product!
DOCUMENTATION

Only the latest documents can be downloaded. Therefore, there may be a discrepancy between already printed and downloaded materials.

To download, please click on the name of the document you want to download.

• Technical datasheet (PDF)

• Declaration of Conformity (PDF)

• PROTECT XTRA+ Fog fluid Safety Data Sheet (English PDF)

• PROTECT XTRA+ Fog fluid Safety Data Sheet (Bulgarian PDF)

• PROTECT XTRA+ Fog fluid Safety Data Sheet (Croatian PDF)

• PROTECT XTRA+ Fog fluid Safety Data Sheet (Serbian PDF)

• PROTECT XTRA+ Fog fluid Safety Data Sheet (Slovenian PDF)

• DTI Declaration of chemical analysis & assessment (PDF)

• MABISZ Product Conformity Recommendation (PDF)

• Connection diagrams (PDF)

VIDEO GALLERY

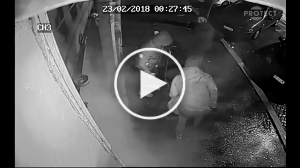

PROTECT FOQUS in action

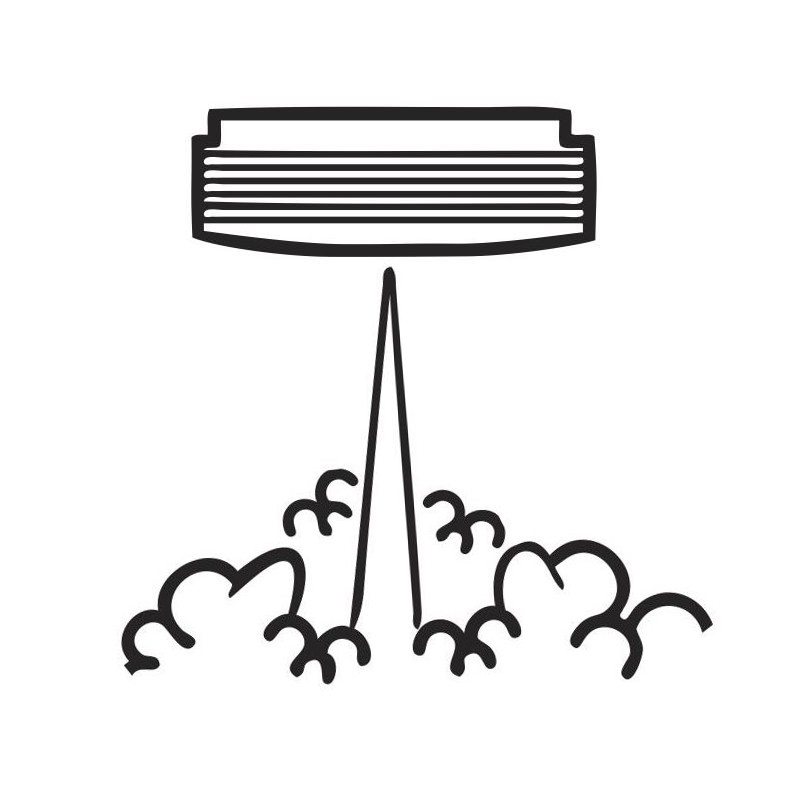

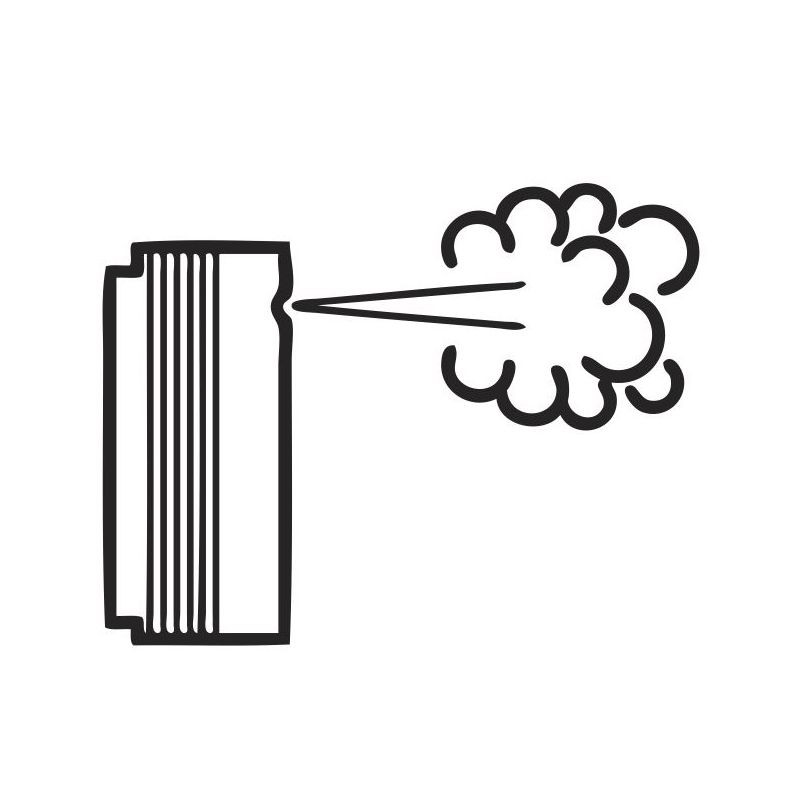

Nozzles
