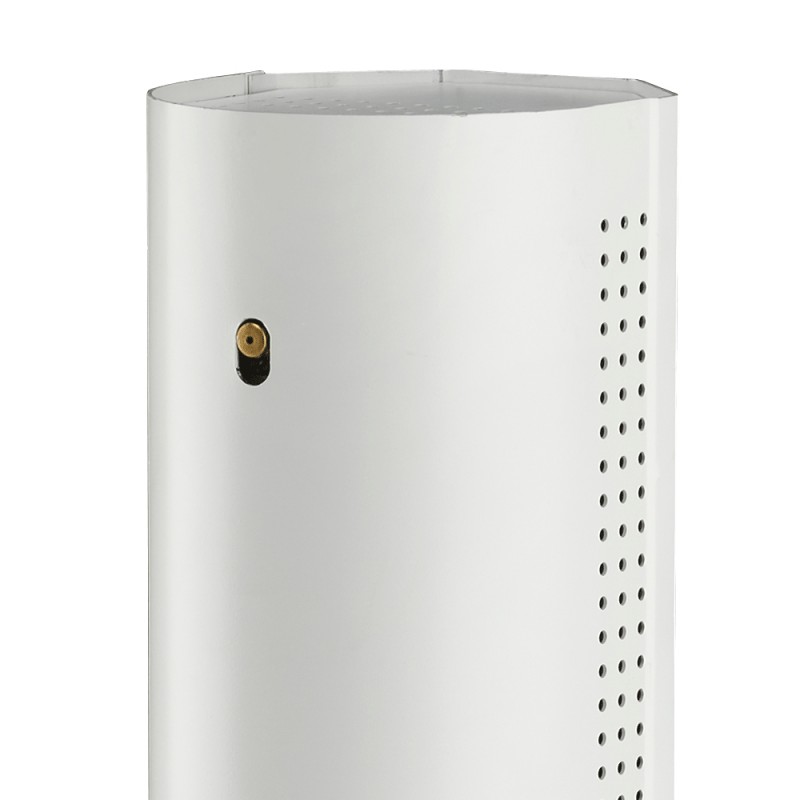

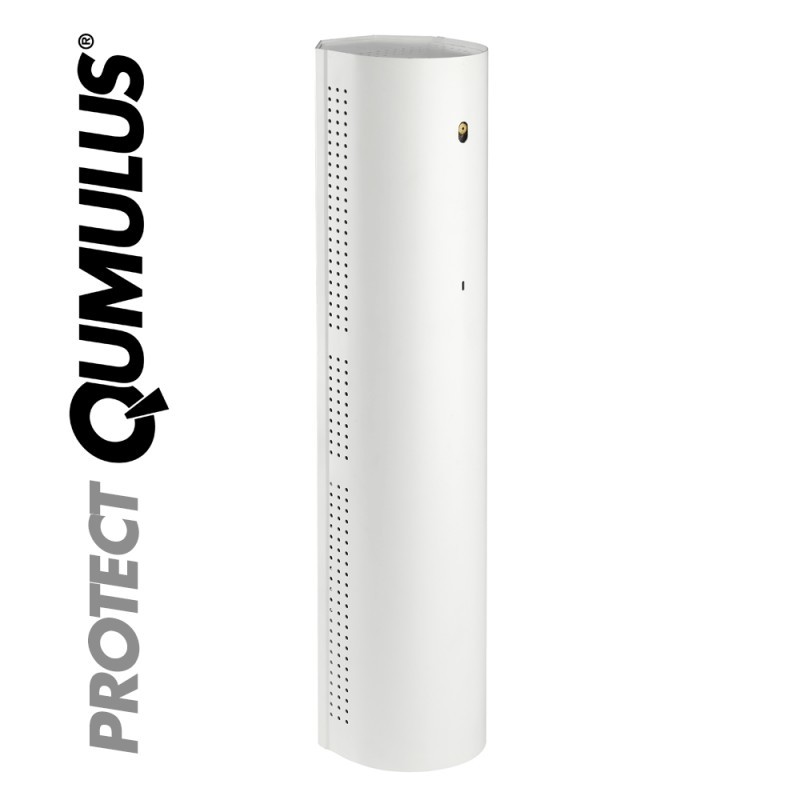

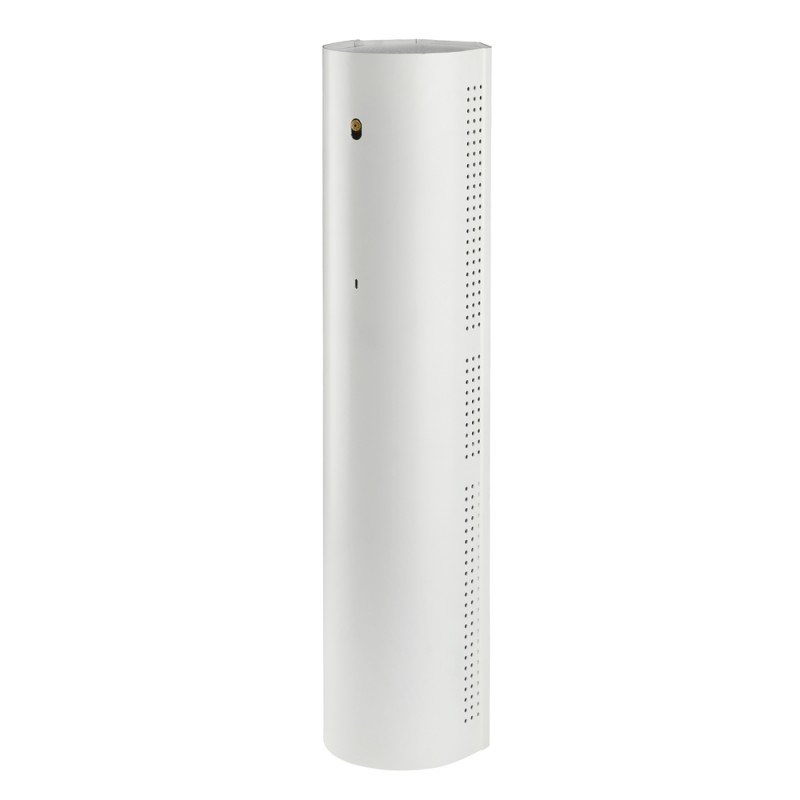

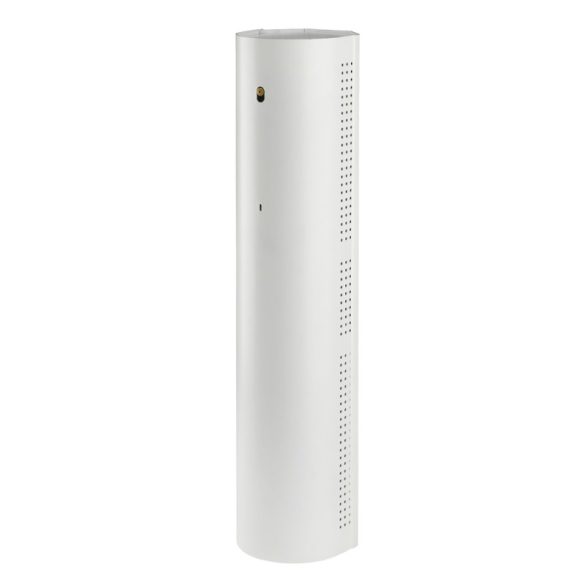

The PROTECT QUMULUS Fog Cannon includes: one-hole 90° nozzle, XTRA+ 0,4 l. fog fluid bag and backup batteries.

Add to Favourites
Recommend
Comparison
Question about the product
Details
Similar products
Specifications
Reviews
DOCUMENTATION
VIDEO GALLERY
Details

Model QUMULUS is a design revolution within security fog.

Even with its friendly, elegant and discreet appearance it has the power to drive away evil burglars – even before they get started.

Because of the aesthetic, patented design and high quality, QUMULUS is the chosen model for private homes and exclusive offices and shops.



Features:

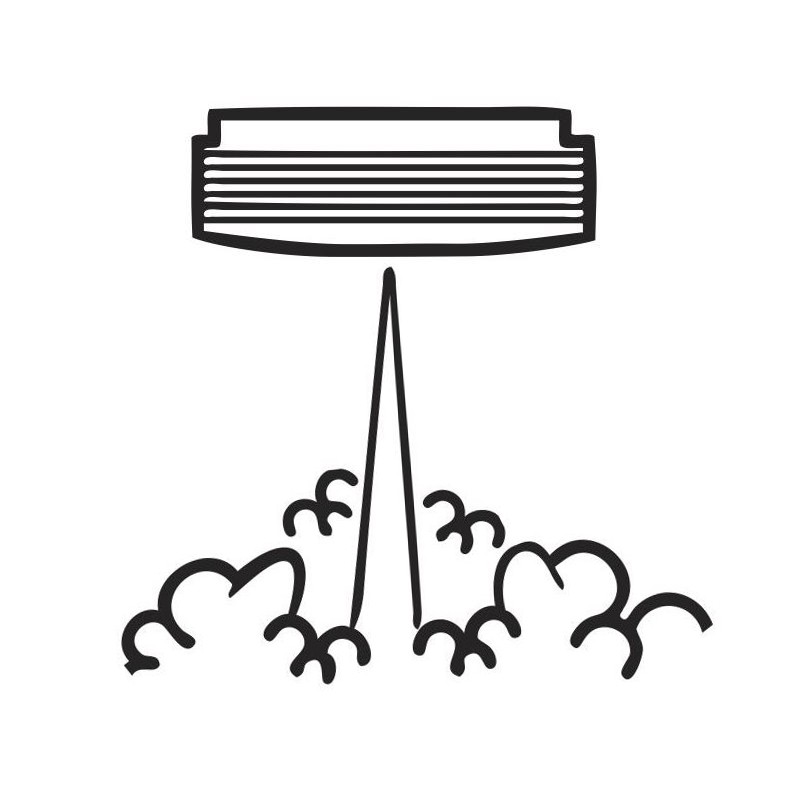

• Discharges 400 m3 of fog at full speed in 60 seconds which is sufficient to cover a living room for up to 50 m2

• Flexible adjustment between 140 and 400 m3 to exactly fit the size of the room

• Pulse function for up to 4 min. (effective maintenance of the fog)

• Compatible with any alarm system

• Compatible with IPCard, MultiCard and IntelliBox

• Data log memory possible with IntelliSuite

• Integration with all types of alarm systems

• 100 % silent in standby mode

• Prepared for 2 different angled nozzles

• Patented design for installation in corners

Similar products
Specifications
Premises to be protected
Private house, Convenience store, Pawn shop, Jewellery store, Exchange house
Fog generation settings
5
Total capacity (full fluid container)
1 800 m³
Fog fluid
0,4 l. bag
Electronic fluid measurement
Yes
Mains connection
230V, 50Hz
Degajări de ceaţă de 60 sec. dintr-o pungă cu fluid
4
Pulse function
Yes
Heating time from cold
8 min.
Power consumption during heating
1 050 W
Standby consumption after heating up (on average)
60 W
Standby consumption when heat is disabled
5 – 10 W
Re-heating time after fog discharge
0 – 5 min.
Operating temperature (min./max.)
5 – 80 °C
Input
5 signals
Output
3 signals
Signals setting
Dipswitches
Power backup
2 x 12V, 1.2 Ah batteries
Backup time after power failure
Up to 1 hour
Battery charging & testing
Yes
Signals/indicators
Optical, audible and electrical
Status indicator on PCB
Yes
External status indicator on casing
Yes
Anti-sabotage, impact-resistant steel casing
Yes
Length
650 mm
Width
140 mm
Height
148 mm
Weight
10 kg
Reviews
Be the first to review this product!
DOCUMENTATION

Only the latest documents can be downloaded. Therefore, there may be a discrepancy between already printed and downloaded materials.

To download, please click on the name of the document you want to download.

• Technical datasheet (PDF)

• Declaration of Conformity (PDF)

• PROTECT XTRA+ Fog fluid Safety Data Sheet (English PDF)

• PROTECT XTRA+ Fog fluid Safety Data Sheet (Bulgarian PDF)

• PROTECT XTRA+ Fog fluid Safety Data Sheet (Croatian PDF)

• PROTECT XTRA+ Fog fluid Safety Data Sheet (Serbian PDF)

• PROTECT XTRA+ Fog fluid Safety Data Sheet (Slovenian PDF)

• DTI Declaration of chemical analysis & assessment (PDF)

• MABISZ Product Conformity Recommendation (PDF)

• Connection diagrams (PDF)

VIDEO GALLERY

PROTECT QUMULUS in action

Nozzles

Display

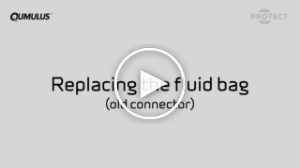

Replacing the fluid bag (old connector)

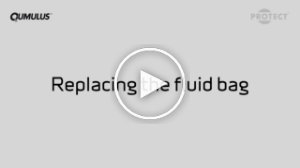

Replacing the fluid bag (new connector)
